As power distribution networks expand into urban, semi-urban, and rural areas, utilities and EPC contractors face increasing challenges related to safety, reliability, and installation efficiency. One solution that continues to gain global traction is the aerial bundle cable (ABC) system. Designed to replace traditional bare conductors in overhead lines, aerial bundle cables provide enhanced safety, reduced power losses, and improved durability in demanding environments.

This guide explains the fundamentals of aerial bundle cables, their construction, advantages, applications, and key considerations for engineers and procurement professionals.

What is an Aerial Bundle Cable?

An aerial bundle cable (ABC) is an overhead power distribution cable system consisting of multiple insulated conductors bundled together, typically supported by a messenger wire or neutral conductor. Unlike conventional bare overhead conductors, ABC systems are insulated, minimizing the risk of electrical faults and environmental interference.

ABC is widely used in low voltage (LV) and medium voltage (MV) distribution networks, particularly in areas where safety and space constraints are critical.

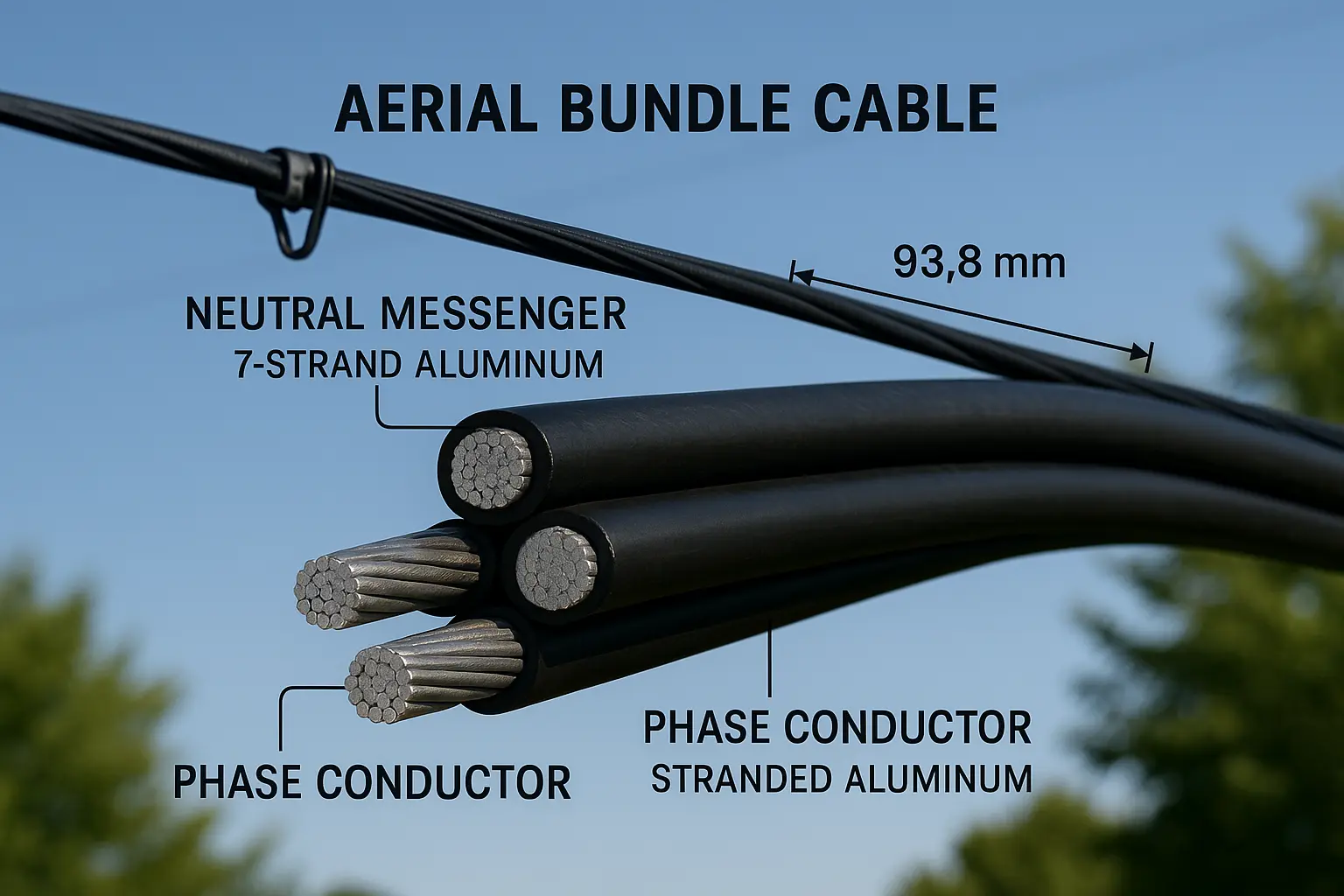

Construction and Components of ABC

1. Conductors

Aerial bundle cables use high-quality aluminum conductors such as:

• Aluminum Conductor (AAC)
• All Aluminum Alloy Conductor (AAAC)
• Aluminum Conductor Steel Reinforced (ACSR)

These conductors are selected based on mechanical strength and electrical performance requirements.

2. Insulation

The conductors are insulated using cross-linked polyethylene (XLPE) or polyethylene (PE), which provides:

• Excellent electrical insulation
• UV resistance
• Weather protection

3. Messenger Wire (Neutral)

The messenger wire supports the cable mechanically and may also serve as a neutral conductor. It is typically made of AAAC or ACSR for high tensile strength.

4. Bundling Configuration

The insulated phase conductors and neutral are twisted together, forming a compact bundle that can be easily installed on poles or structures.

Key Advantages of Aerial Bundle Cable

Enhanced Safety

One of the primary benefits of ABC systems is improved safety. The insulated conductors significantly reduce the risk of:

• Electrical shocks
• Short circuits
• Fire hazards

This makes ABC ideal for densely populated areas.

Reduced Power Loss and Theft

ABC systems minimize energy losses caused by conductor contact or leakage. Additionally, their insulated design makes illegal tapping much more difficult, helping utilities reduce revenue losses.

High Reliability

ABC performs well under harsh weather conditions such as wind, rain, and storms. The bundled design reduces conductor swinging and prevents phase-to-phase faults.

Lower Maintenance Costs

Compared to bare conductors, ABC systems require less frequent maintenance due to:

• Reduced corrosion
• Minimal vegetation interference
• Lower fault rates

Easy Installation

ABC systems are easier and faster to install, especially in complex terrains or congested urban environments where space is limited.

Applications of Aerial Bundle Cable

Urban Distribution Networks

ABC is widely used in cities where safety and space constraints are major concerns. It allows power lines to be installed closer to buildings without compromising safety.

Rural Electrification

In remote areas, ABC simplifies installation and reduces infrastructure costs, making it an efficient solution for rural electrification projects.

Industrial Zones

Industrial environments benefit from ABC due to its durability and resistance to mechanical stress and environmental factors.

Temporary Power Supply

ABC is also used in temporary setups such as construction sites, events, and emergency power restoration due to its quick deployment capabilities.

ABC vs Traditional Bare Conductors

This comparison clearly shows why many utilities are transitioning to ABC systems for modern power distribution.

Key Considerations for Procurement

Material Quality

Ensure the conductor material meets international standards for conductivity and strength.

Insulation Performance

High-quality insulation is critical for long-term reliability, especially in extreme weather conditions.

Mechanical Strength

The cable must withstand environmental stress such as wind load and tension.

Compliance with Standards

Look for products that comply with IEC, ASTM, or other relevant standards to ensure safety and performance.

Supplier Reliability

Choosing an experienced manufacturer is essential to ensure consistent quality and technical support.

Why Choose HNBF Power for Aerial Bundle Cable?

HNBF Power is a global manufacturer specializing in overhead conductors and power cable solutions, including aerial bundle cables. With a strong focus on quality, performance, and customization, HNBF Power supports utilities, EPC contractors, and infrastructure developers worldwide.

Key strengths include:

• Advanced manufacturing facilities
• Strict quality control systems
• Custom design capabilities for project-specific requirements
• Reliable supply chain for large-scale projects

HNBF Power understands the operational challenges faced by engineers and procurement teams and delivers solutions that enhance efficiency and long-term performance.

FAQs

What is the main purpose of aerial bundle cable?

Aerial bundle cable is used to provide safer and more reliable overhead power distribution by using insulated conductors bundled together.

Is ABC suitable for high-voltage applications?

ABC is primarily used for low and medium voltage applications, though specialized designs can support higher voltage requirements.

How does ABC reduce power theft?

The insulated design makes it difficult to access conductors illegally, reducing unauthorized connections.

What is the lifespan of aerial bundle cables?

With proper installation and quality materials, ABC systems can last 25–40 years depending on environmental conditions.

Can ABC be used in coastal or harsh environments?

Yes, ABC is highly resistant to environmental factors such as humidity, UV exposure, and corrosion, making it suitable for harsh conditions.

Conclusion

Aerial bundle cable has become a preferred solution for modern power distribution due to its safety, reliability, and cost-effectiveness. For utilities and EPC contractors, adopting ABC systems means fewer outages, reduced maintenance costs, and improved operational efficiency.

If you are planning a power distribution project or upgrading existing infrastructure, HNBF Power offers customized aerial bundle cable solutions tailored to your technical and commercial requirements. Contact HNBF Power today to discuss your project and get expert support for reliable, future-ready power networks.
